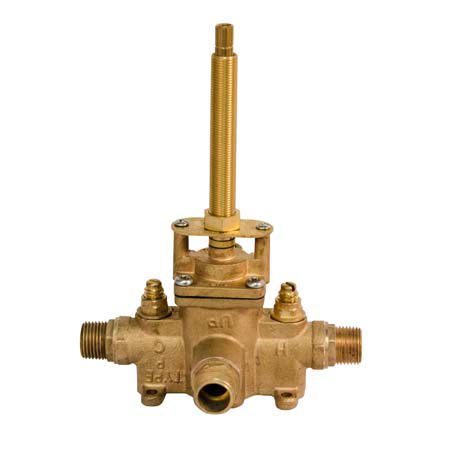

Newport Brass Balanced Pressure Tub & Shower Trim Diverter Valve

Current Finish:
No Finish
Price Group 1
$415.00
The power of choice:

ReadyShip

No Related Products Found
  • No Finish
  • Solid Brass Construction
  • 4 port with service stops
  • Universal 1/2" NPT & direct sweat connections for installation flexibility
  • Provides anti-scald protection and temperature regulation
  • Pressure-balancing technology maintains water temperature within +/- 2 degrees Fahrenheit
  • High-temperature safety stop ensures water temperature stays below maximum setting
  • Integral hot and cold inlet stops ensure easy cartridge access. Integral pull-style diverter with automatic reset.
  • Mounting tabs located on rough-in for secure installation option
  • 1-1/16” functional depth (center-back) enables back-to-back installation
  • Maximum handle rotational requirement of 150 degrees to achieve maximum temperature setting
  • 5.8 gpm (gallons per minute) flow rate (@ 50 psi)
